Boiler Leaking From the Top – Causes, Risks & What To Do
A boiler leaking from the top is less common than a bottom leak, but when it happens it usually points to an internal fault or pressure-related issue rather than a simple external drip. In many cases the leak starts slowly and worsens over time, which is why it’s often missed until water becomes visible on the casing or surrounding pipework.
This guide explains why boilers leak from the top, what it normally means in real-world systems, and what action is safe to take.

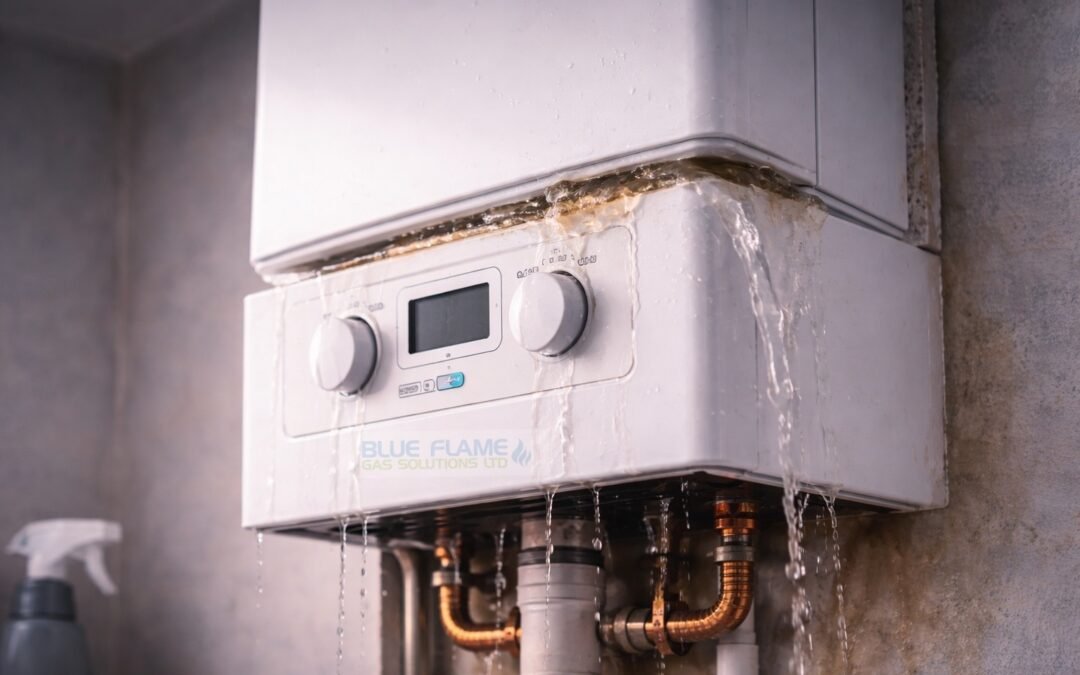

What it means when a boiler leaks from the top
When water appears at the top of a boiler, it usually means the leak is occurring before water reaches the main heat exchanger outlet. This puts the fault higher up the system and often involves components that manage pressure, expansion, or internal circulation.
Top leaks are rarely caused by condensate. Instead, they tend to be linked to mechanical wear, pressure imbalance, or internal seals failing after years of heating and cooling cycles.
Common causes of a boiler leaking from the top
Expansion vessel problems
The expansion vessel absorbs pressure changes as water heats and cools. Over time, the internal diaphragm can fail or the vessel itself can corrode.
When this happens:
-
System pressure rises too quickly
-
Water is forced out through weak points
-
Leaks often appear high inside the boiler
A failed expansion vessel is one of the most common causes of top-side leaks.
Automatic air vent (AAV) leaks
Most boilers have an automatic air vent near the top to release trapped air. These vents contain small seals and floats that wear out.
Signs include:
-
Slow dripping that worsens when heating is on
-
Intermittent leaks rather than constant flow
-
Pressure gradually dropping over days or weeks
Because air vents sit high inside the boiler, any failure here usually presents as a top leak.
Internal pipework or joint failure
Inside the casing are multiple pipe connections carrying hot water at pressure. Over time:
-
O-rings harden
-
Compression joints loosen slightly
-
Vibration from pumps causes micro-movement
These leaks may only show when the system heats up, making them harder to spot early.
Early heat exchanger failure
Although less common, internal heat exchanger cracks or corrosion can cause water to escape higher up inside the boiler.
This typically presents as:
-
A leak that worsens with temperature
-
Repeated pressure loss
-
No visible external pipe faults
Left unresolved, this type of fault usually escalates.
Pressure-related stress
If the boiler regularly over-pressurises, components not designed to release water can begin to leak.
Underlying causes include:
-
Failed expansion vessel
-
Incorrect system pressure
-
Repeated manual repressurising
Top leaks caused this way are often symptoms rather than the root fault.
Is a boiler leaking from the top dangerous?
A top-side leak carries higher risk than many bottom leaks because water can drip onto:
-
Electrical components
-
Control boards
-
Wiring looms
Even a slow drip can eventually lead to:
-
Boiler lockouts
-
Intermittent faults
-
Complete breakdown
For this reason, top leaks should never be ignored.
What you should do immediately
If you notice water leaking from the top of your boiler:
-
Switch the boiler off
-
Avoid repeated repressurising
-
Check the pressure gauge
-
Do not remove the casing
-
Isolate electrics if water is heavy and it’s safe to do so
Internal components must only be accessed by a qualified engineer.
Can you keep using the boiler?
In most cases, no.
Using a boiler with a top-side leak risks water reaching sensitive electrical parts. Even if heating or hot water still works, continued use often turns a repairable issue into a much more expensive failure.
When a boiler repair is needed
A boiler leaking from the top almost always requires internal inspection. This is not something that can be resolved with topping up pressure or adjusting settings.
A proper repair involves identifying whether the issue is:
-
Pressure control related
-
A failing internal component
-
A seal or joint that has degraded over time
Key takeaways
-
Top leaks usually indicate internal faults
-
Expansion vessels and air vents are common causes
-
Electrical damage risk is higher than bottom leaks
-
Early diagnosis prevents major component failure
